How Do Conveyor Belts Work?

In the landscape of warehouse automation, conveyor belts stand out as fundamental components that facilitate the movement of goods from one point to another. They are the arteries of a warehouse, ensuring that items are transported efficiently and smoothly across different sections. This automated system is designed to handle a wide range of products, from small packages to large pallets, making it a versatile solution for various operational needs. In this article, we dive into how these conveyor belts actually work, including how they are in fact controlled.

What is a conveyor belt?

A conveyor belt is a system that consists of a flexible belt looped over two or more pulleys that rotate, moving the belt and any material placed on it from one location to another. It's commonly used in various industries for transporting materials and goods across short or long distances within a site. The main functions of a conveyor belt include transportation, assembly processes, sorting, loading and unloading. Overall, conveyor belts are crucial for improving efficiency, speed, and accuracy in the handling and processing of materials and products.

{{cta1}}

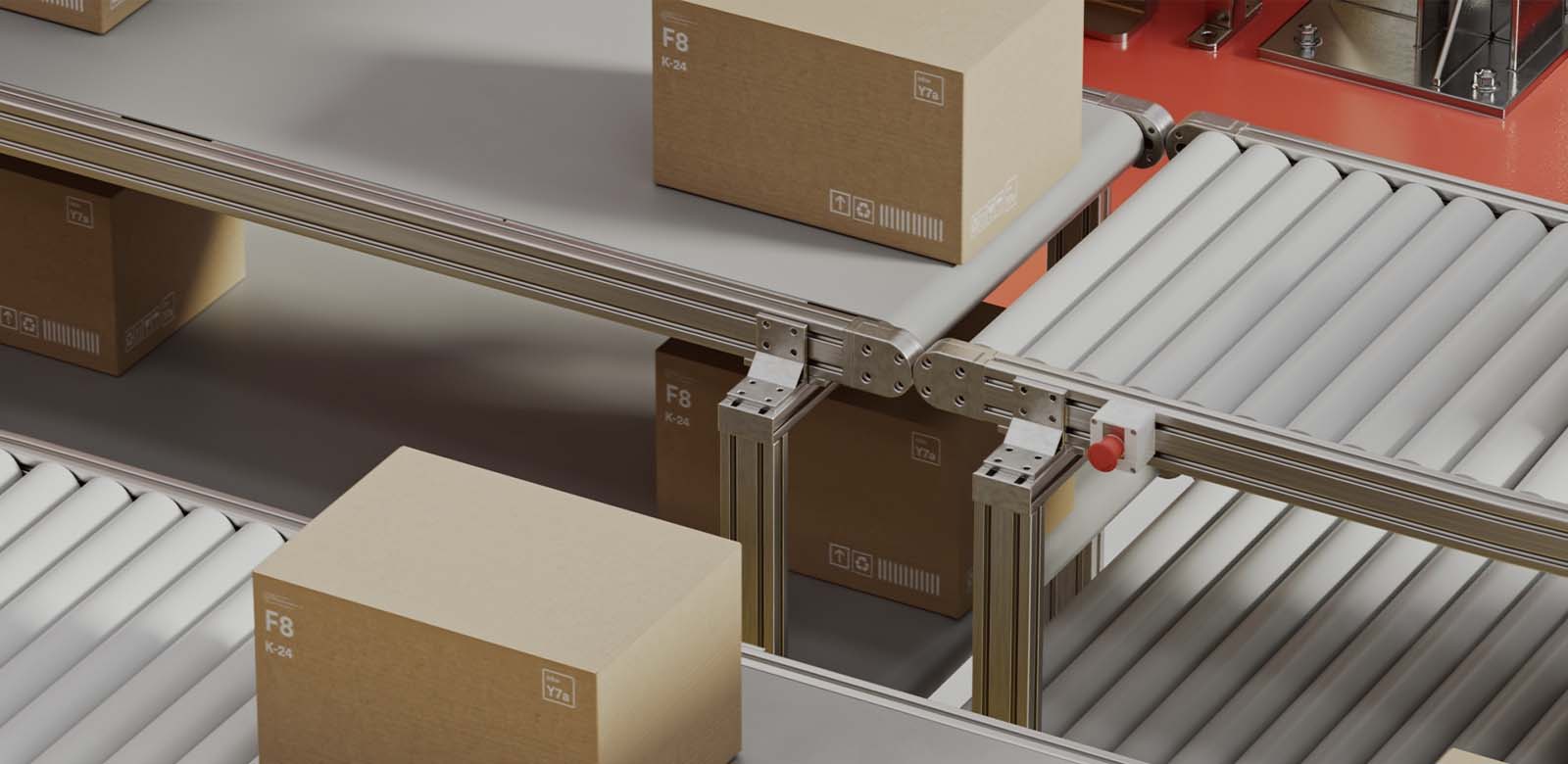

How conveyor belts work

So, at its core, a conveyor belt operates on a relatively simple principle: it consists of a belt that moves over a series of rollers or a flat surface. Simple, right? The belt is made from various materials like PVC, rubber, or mesh, depending on the application, and is powered by motors. These motors rotate the rollers, which in turn move the belt and the goods placed on it.

The operation of a conveyor belt involves several key components:

1. Motor drive

The heart of a conveyor belt system is the motor drive, which provides the necessary power to turn the drive pulley. This motor can vary in size and power depending on the load it needs to move and the speed at which the belt must operate. Motors are typically electric and can be equipped with speed controllers to adjust the conveyor belt's velocity according to the operational requirements.

2. Drive pulley

Attached to the motor drive is the drive pulley. This pulley is responsible for imparting the motion to the belt. As the motor rotates the pulley, the belt moves in the direction of the motor's rotation. The drive pulley is often coated or made of materials that increase its grip on the belt to prevent slippage.

3. Conveyor belt material

The belt itself is a critical component, made from various materials such as rubber, PVC, neoprene, urethane, or nylon, based on the application's specific needs. The choice of material affects the belt's durability, friction, and capability to transport different types of goods. For instance, a belt designed to carry sharp objects might be made from tougher materials to resist cuts and wear.

4. Idler rollers

Positioned along the conveyor frame, idler rollers support the belt and the goods being transported. These rollers help maintain the belt's tension and ensure it remains aligned and flat. They also reduce the friction and wear on the belt, extending its lifespan. In some systems, idler rollers can be adjusted to change the belt's path or tension.

5. Conveyor frame

The frame serves as the backbone of the conveyor belt system, providing support for the rollers, motor, and belt. It is typically constructed from steel or aluminum for durability and can be designed to accommodate various conveyor lengths and widths.

6. Control system

Modern conveyor belts are often part of an automated system controlled by a central computer. This control system can dictate the belt's speed, direction, and even integrate with sensors to start or stop the belt automatically based on the workflow. For example, in a warehouse, the system might pause the belt to allow for the automated sorting or scanning of packages.

Let’s take a closer look at how the conveyor belt is controlled.

How a conveyor belt is controlled

The control of a conveyor belt is a critical aspect of its operation, ensuring that the system can efficiently and safely transport materials according to the specific needs of a facility. Modern conveyor systems are equipped with sophisticated control mechanisms that allow for precise management of the belt's movement, speed, and direction. Here's more specifically how these systems are controlled.

Control systems and automation

Most conveyor belts are part of an automated system controlled by a central computer or programmable logic controller (PLC). These control systems are programmed to manage the conveyor's operation, including starting and stopping the belt, controlling the speed, and directing the belt's movement. The automation allows for seamless integration with other systems within a facility, enabling synchronized operations that enhance overall efficiency.

Speed control

The speed of a conveyor belt can be adjusted to match the operational requirements of a task. Variable speed drives (VSDs) or variable frequency drives (VFDs) are commonly used to control the motor's speed, allowing the conveyor to operate at different speeds as needed. This is particularly useful in assembly lines or when handling materials that require careful handling.

Direction control

Some conveyor belts are designed to move in both directions. This capability is controlled by reversing the motor's direction, allowing the conveyor to transport materials to and from different locations within a facility. Direction control enhances the flexibility and utility of the conveyor system.

Sensors and feedback loops

Conveyor systems often incorporate sensors and feedback mechanisms to monitor and control the belt's operation. These can include photoelectric sensors, proximity sensors, and weight sensors. They provide real-time data on the conveyor's status, such as the presence of items on the belt, the belt's alignment, and the load. This information is used to make automatic adjustments to the conveyor's operation, improving efficiency and preventing issues like overloads or jams.

Safety controls

Safety is a paramount concern in the control of conveyor belts. Emergency stop buttons, safety switches, and guards are integrated into the control system to ensure safe operation. These features allow for the immediate stopping of the conveyor in case of an emergency, protecting both the workers and the materials being transported.

Integration with Warehouse Management Systems (WMS)

In advanced logistics operations, conveyor belts are often integrated with Warehouse Management Systems (WMS) and other automation technologies. This integration allows for the coordinated movement of goods, optimizing the flow of materials through processes like sorting, packaging, and shipping. The WMS can dictate the operation of the conveyor belt based on real-time inventory needs, enhancing the precision and timing of material handling.

Evolution of conveyor belts: Advanced features

As conveyor belt systems have evolved, so have their capabilities, integrating advanced features that enhance functionality, efficiency, and adaptability in dynamic warehouse environments. These advancements are not just about moving goods from point A to point B; they are about optimizing the entire logistics chain within the warehouse, from sorting and tracking to load management and operational flexibility. The integration of technology into conveyor systems allows warehouses to handle a more significant volume of goods, improve accuracy in processing and shipping, and adapt to changing demands with greater agility.

Advanced conveyor systems may include features such as:

• Variable speed controls: Allows the conveyor to speed up or slow down based on the operational needs, optimizing workflow.
• Reversible direction: Some conveyor belts can move in both directions, offering greater flexibility in how goods are moved within a facility.
• Automated sorting systems: Integrated with sensors and actuators, these systems can identify items on the belt and direct them to specific locations.
• Load sensors: Detect the presence of items on the belt, allowing the system to automatically adjust its operation to prevent overloading or jams.

{{cta2}}

How conveyor belts integrate with the AutoStore System

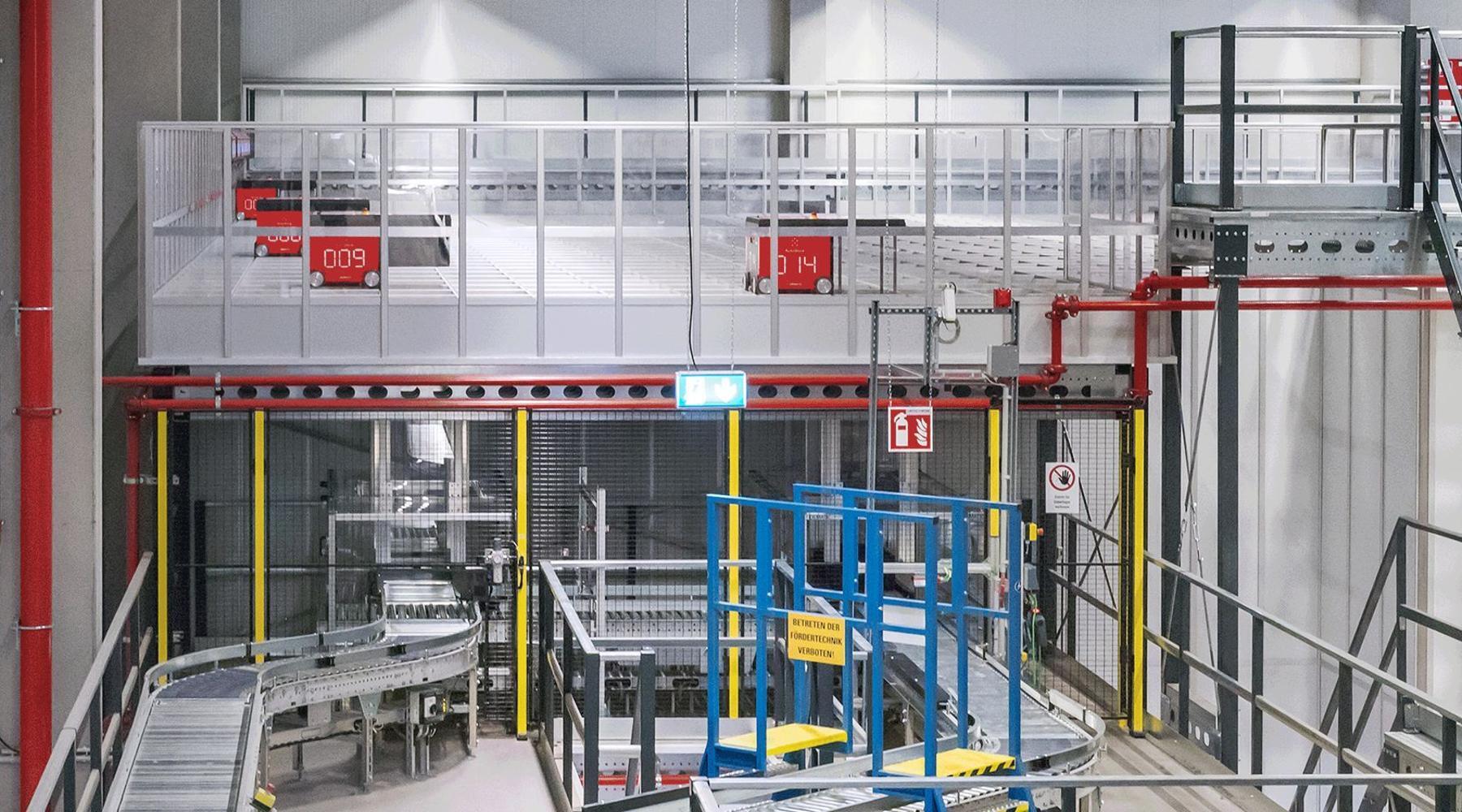

The integration of the AutoStore system with conveyor belts represents a significant advancement in warehouse automation, merging the high-density storage capabilities of AutoStore with the efficient material transport provided by conveyors.

AutoStore systems, known for optimizing storage density and retrieval speed, work seamlessly with conveyor systems that excel in moving goods swiftly from one point to another. This integration minimizes manual handling and streamlines operations, making warehouses more efficient and reducing the time needed for order processing.

Key integration points

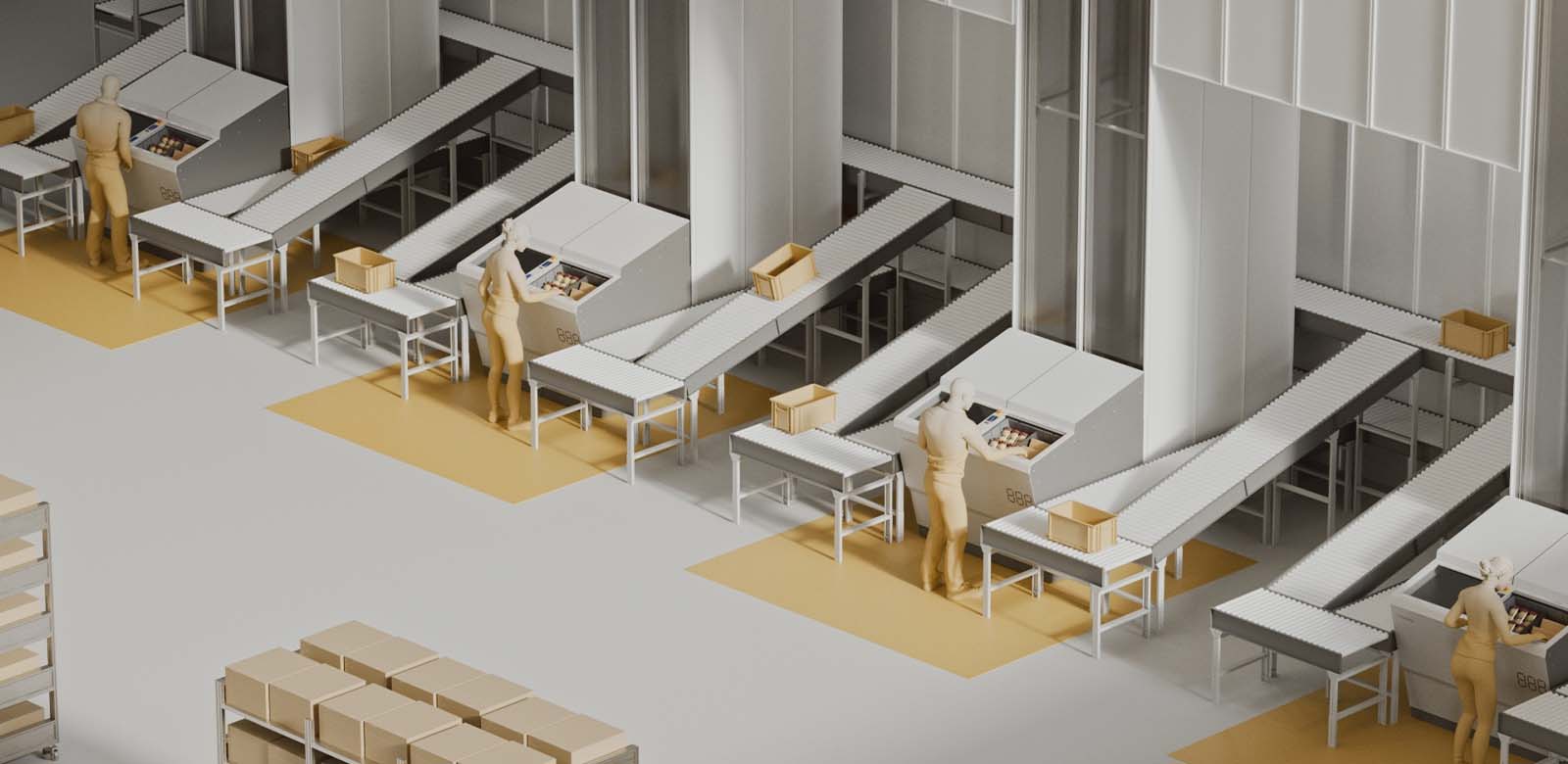

1. Conveyors at AutoStore Ports: Conveyor belts are effectively integrated at AutoStore Workstations (Ports), where goods are picked and placed onto conveyors for immediate transport to areas like shipping or packing. This setup enhances order fulfillment speed and reduces manual labor.
2. Design compatibility: Many AutoStore Workstation designs, such as the FusionPort, incorporate space for conveyor installation, ensuring a smooth flow of goods from the storage Grid to the conveyor system. This design consideration facilitates a compact and efficient workspace.
3. Transfer cells: Beyond Workstations, AutoStore utilizes Transfer Cells for direct Bin movement from the AutoStore Grid to conveyors. This feature is crucial for optimizing the flow of goods within the warehouse, allowing for a more efficient sorting and distribution process without manual intervention.

All in all, the strategic integration of AutoStore with conveyor systems significantly boosts warehouse operation efficiency. By combining AutoStore storage optimization with the transport efficiency of conveyors, warehouses achieve a streamlined, productive environment that minimizes manual labor and maximizes operational speed and accuracy. This synergy showcases the future direction of warehouse automation, emphasizing efficiency, and lean operation.

Conclusion

Understanding how conveyor belts work unveils the sophistication behind these pivotal components of warehouse automation. From basic transportation to complex integrations with systems like AutoStore, conveyor belts have revolutionized how goods are moved within various industries. Their evolution incorporates advanced features that not only meet but anticipate the needs of modern logistics, making them indispensable for efficiency and productivity. As warehouses continue to seek solutions that minimize manual labor and maximize operational throughput, the role of conveyor belts becomes increasingly central, embodying the future of automated and efficient logistics operations.

‍

FAQ

What causes the conveyor belt to move?

The movement of a conveyor belt is primarily caused by a motor drive that powers a drive pulley. The rotation of this pulley exerts force on the belt, causing it to move. The belt's movement is guided by rollers or a flat surface that support it across the system.

What makes the conveyor belt run?

A conveyor belt runs due to the mechanical action of a motor that turns the drive pulley. This pulley, in contact with the conveyor belt, transfers its rotational motion to the belt, propelling it forward. The system's design, including the belt's tension and the alignment of rollers, ensures smooth and continuous operation.

What are the basics of a conveyor belt?

The basic components of a conveyor belt system include the conveyor belt itself, which is made from materials like rubber or PVC; the motor drive that provides the power; drive and idler pulleys (or rollers) that support and move the belt; and a control system that manages the belt's speed and direction. These elements work together to transport items efficiently from one location to another within a facility.

How does a belt system work?

A belt system works by converting the rotational motion of a motor into the linear motion of a conveyor belt. The motor rotates a drive pulley, which then moves the belt around the conveyor system. The belt travels over idler rollers or a flat surface that maintains its path and tension. Items placed on the belt are thus transported along the system's length. Control systems can adjust the belt's speed and direction, enhancing the system's flexibility and efficiency in material handling processes.
